How do I set up my home phone with the Nokia Beacons?

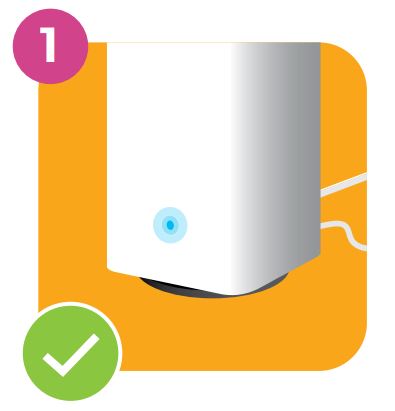

  1.  Complete Beacon set-up

First, complete the setup instructions for your Nokia Beacons. Ensure Beacon #1 is glowing blue.

Step 1

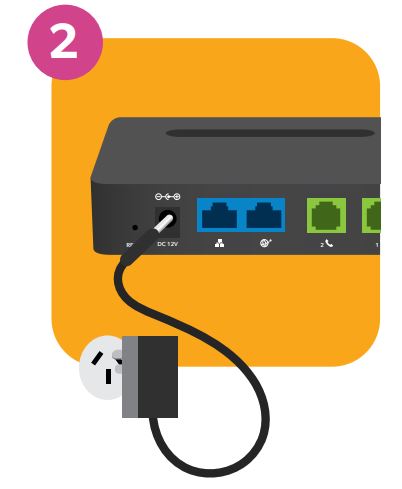

  1. Connect power adapter

Connect the power adapter to the ATA,  then plug it into a wall socket close to Beacon #1 and switch the power on. Only use the power adapter provided with this ATA.

Step 2

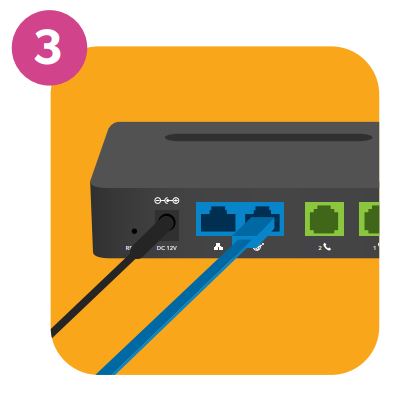

  1. Connect Ethernet cable

Connect the blue Ethernet cable to the blue WAN port on the back of the ATA. Symbolised by a small globe.

Step 3

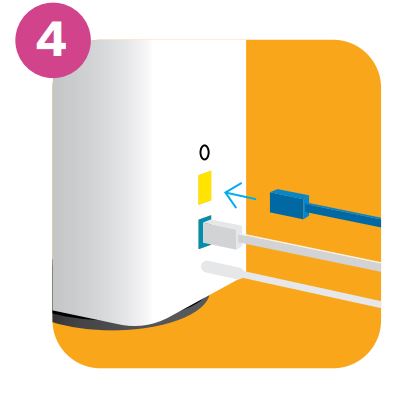

  1. Connect to Beacon

Plug the other end of the Ethernet cable into the yellow LAN port on the back of Beacon #1 (the one connected to your ONT).

Step 4

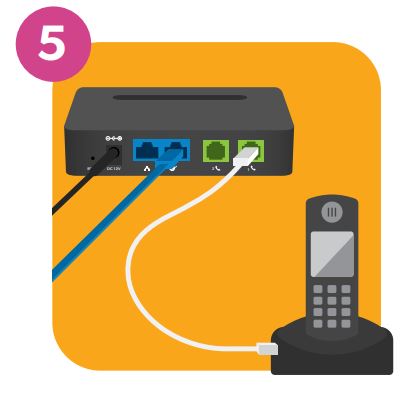

5. Connect to VoIP handset base unit

Using an RJ11 cable, connect a VoIP phone base unit to Telephone port 1 on the back of the ATA. Please note, your phone equipment must be Telepermit compatible;

Step 5

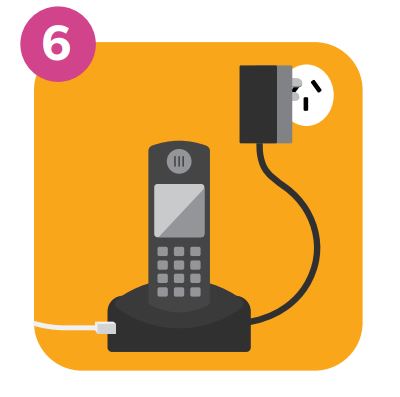

  1. Power on your phone handset

Connect the power adapter to the phone base unit, plug it into a wall socket and power it on. You should now be ready to make and receive calls.

Step 6
