How do I set up my home phone with the NetComm modem?

All the cables you need are provided in the boxes with your Panasonic home phone and your NetComm NF18ACV modem.


  1. Locate the RJ11 telephone cable that connects your home phone to your NetComm modem.
  2. Take the phone cable and connect one end into Telephone Port 1 or 2 on the back of your modem.
  3. Connect the other end of the phone cable to the main phone base unit. Connect the main phone base unit to the power supply using the connection supplied.
  4. Insert two of the AAA batteries that came with the phone into each handset as directed by the label in the battery compartment.
  5. The second phone handset can be installed in another location in your home. The phone needs to be plugged into a power supply using the connection supplied. Note: This handset does not require any other cabling as it uses a wireless phone connection.

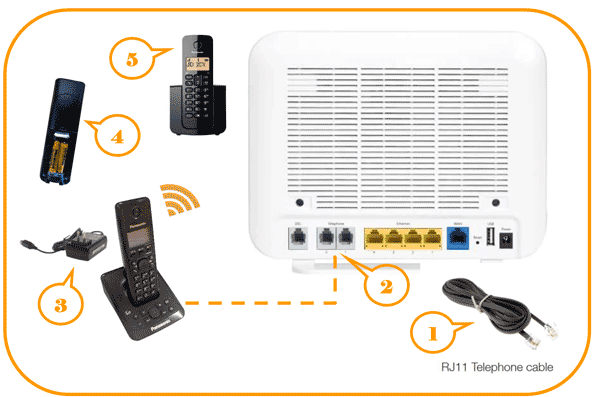

phone set up diagram
