How do I set up my NetComm modem on a ADSL/VDSL connection?

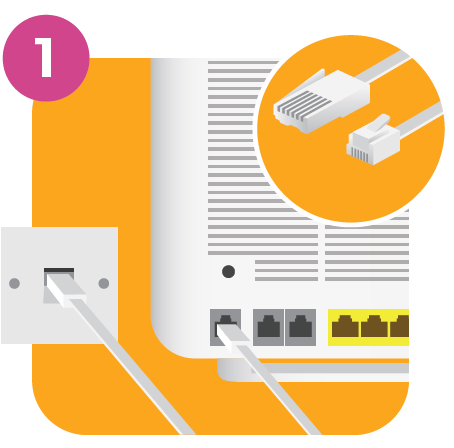

  1.  Connect DSL cable

Using a BT-RJ11 cable, plug the large end into a phone jack and connect the small end to the DSL port on the modem.

step 1

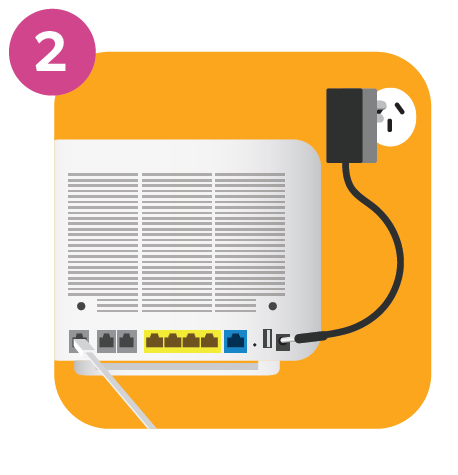

  1. Connect power adapter

Connect the power adapter to the modem, then plug it into a wall socket and switch the power on. Only use the power adapter provided with this modem.

step 2

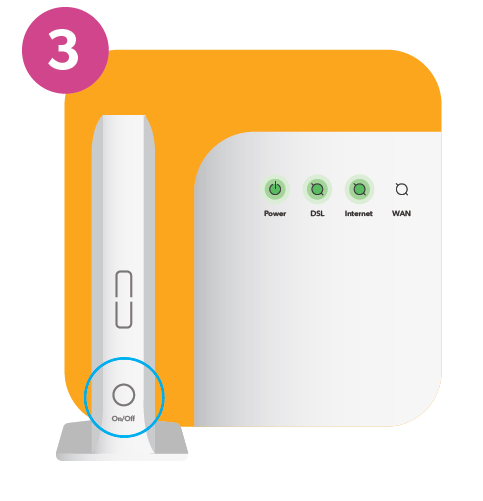

  1. Turn on the modem

Press the ON/OFF button on the left side of the modem. Wait a minute or so for the Power, DSL, and Internet lights to turn green.

step 3

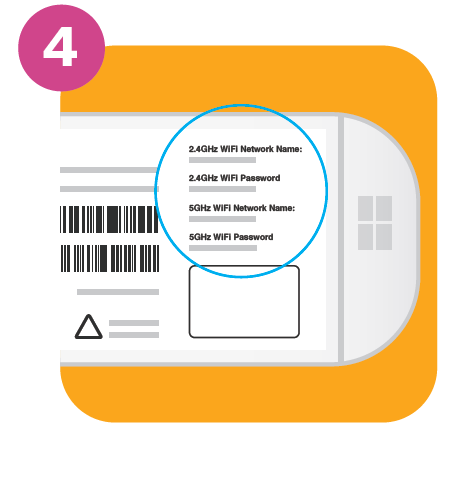

  1. Connect to WiFi

Connect your devices using the Network Name and WiFi Password shown on the base of the modem. Alternatively, use an Ethernet cable to connect a device (e.g. a laptop) to any Ethernet port on the modem.

step 4

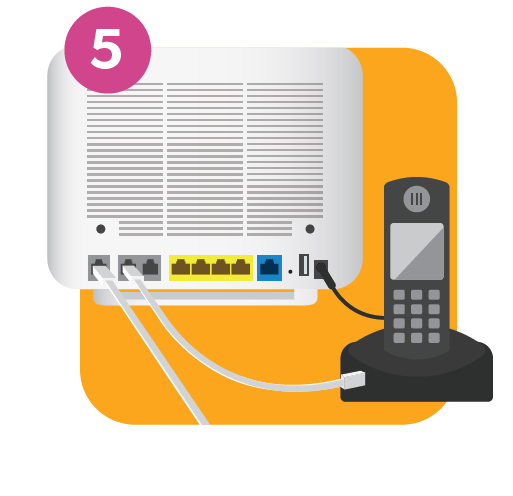

  1. If you have a Home Phone service with us

Using an RJ11 cable, connect a VoIP phone base unit to either Telephone port on the back of the modem. Please note, your phone equipment must be Telepermit compatible.

step 5
